Billet cut-off machines

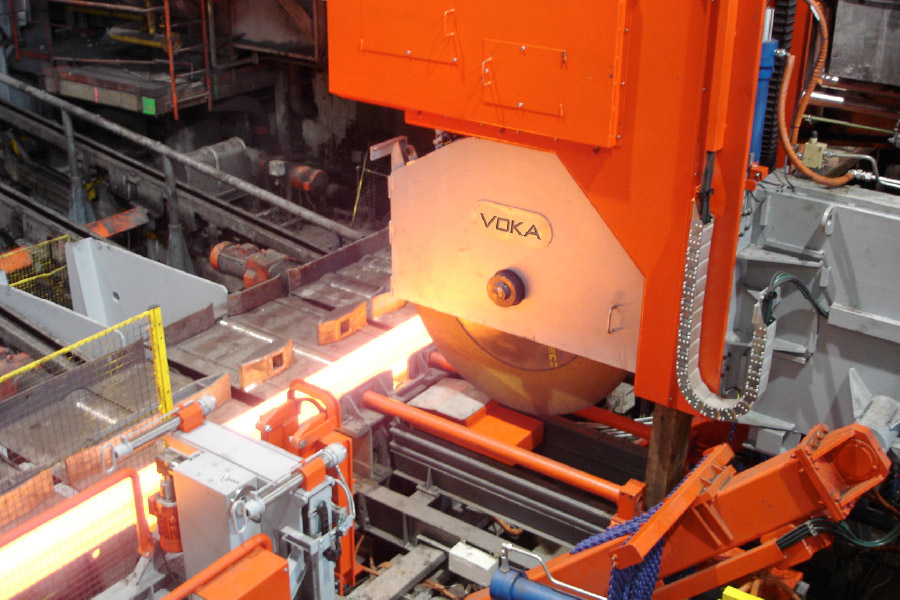

VOKA Billet Cut-Off machines are used worldwide in rolling and forging plants for the cutting of hot or cold high alloyed and super alloyed materials.
- Cabins specifically constructed to house the machine
- Hot cutting up to 1000°C
- Machines with cutting discs up to Ø 2000 mm
Billet cut-off machines with electrical drive
| Type | Disc dimension | Drive power | Max. separation section | Max. disc speed |
|---|---|---|---|---|
| TM 645 | Ø 600 mm | 45 kW | Ø 140 mm | 80 m/s |
| TM 675 | Ø 600 mm | 75 kW | Ø 140 mm | 80 m/s |
| TM 875 | Ø 800 mm | 75 kW | Ø 200 mm | 80 m/s |
| TM 8110 | Ø 800 mm | 110 kW | Ø 200 mm | 80 m/s |
Billet cut-off machines with hydraulic drive
| Type | Disc dimension | Drive power | Max. separation section | Max. disc speed |
|---|---|---|---|---|
| TM 675- HY | Ø 600 mm | 75 kW | Ø 140 mm | 80 m/s |
| TM 8160- HY | Ø 800 mm | 160 kW | Ø 200 mm | 100 m/s |
| TM 10200- HY | Ø 1000 mm | 200 kW | Ø 250 mm | 100 m/s |
| TM 12250- HY | Ø 1250 mm | 250 kW | Ø 300 mm | 100 m/s |
| HTM 1850/ 250- HY | Ø 1850 mm | 250 kW | Ø 400 mm | 100 m/s |
