Foundry cut-off units

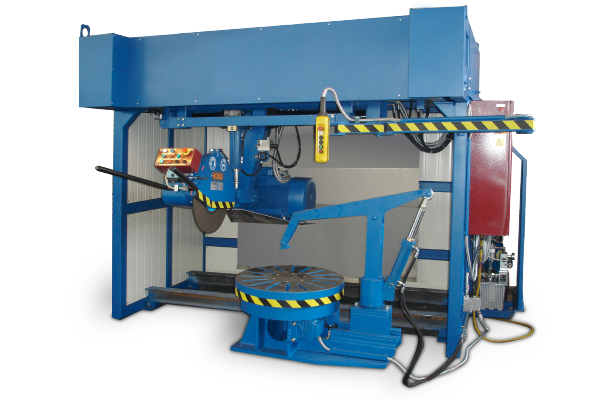

The VOKA foundry cut-off unit GTE is the perfect symbiosis of a hand operated pendulum cut-off machine and stationary cut-off device.
- Robust machine housing
- Simple installation
- All-round mobility of the cut-off unit
- Motorized height adjustment and transverse movement of the cut-off unit
- Noise insulated cabin
- Connection for a dust extraction unit
- Clamping device for work pieces
- Two-handed operation
Advantages of two-handed operation:
- Operator protection
- Integration of the control keys in the handrails of the machine
- Safe handling of the buttons is reinforced by an additional guard
- No long overrun of the cut-off disc
- Immediate energy recovery
- Reduced operating costs
Foundry cut-off units with cardan drive
| Type | Cut-off unit | Disc dimension | Drive power | Max. separation section | Max. disc speed |
|---|---|---|---|---|---|

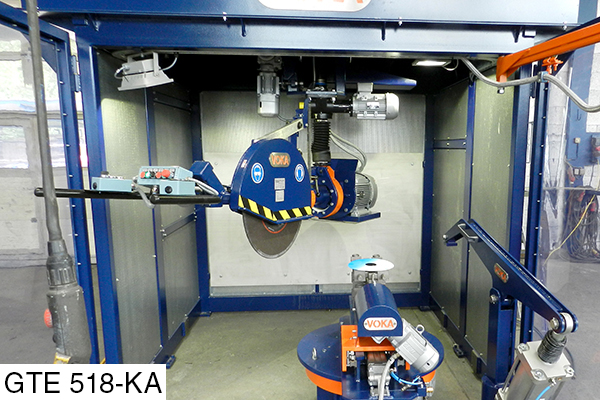

| GTE 518- KA | KPT 518 | Ø 500/5/100 mm | 18.5 kW | Ø 100 mm | 80 m/s |
| GTE 637- KA | KPT 637 | Ø 600/6/100 mm | 37.0 kW | Ø 120 mm | 80 m/s |
Foundry cut-off units with toothed belt drive
| Type | Cut-off unit | Disc dimension | Max. separation section | Max. Disc speed |
|---|---|---|---|---|

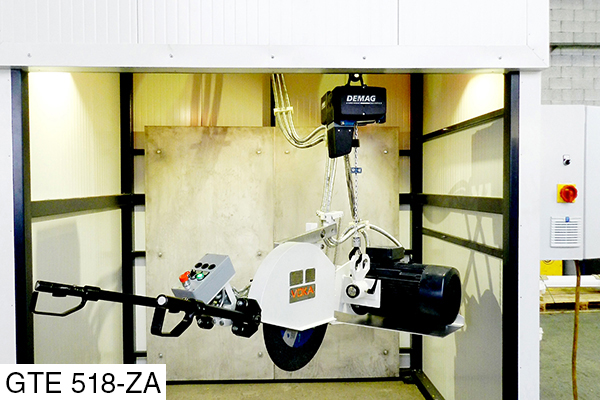

| GTE 518- ZA | ZPT 518 | Ø 500/5/40 mm | Ø 100 mm | 80 m/s |

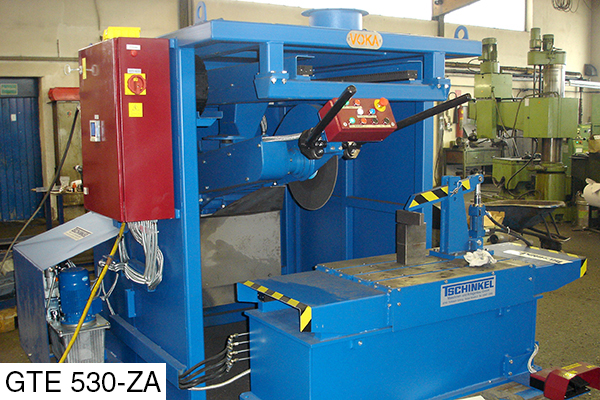

| GTE 530- ZA | ZPT 530 | Ø 500/5/40 mm | Ø 100 mm | 80 m/s |

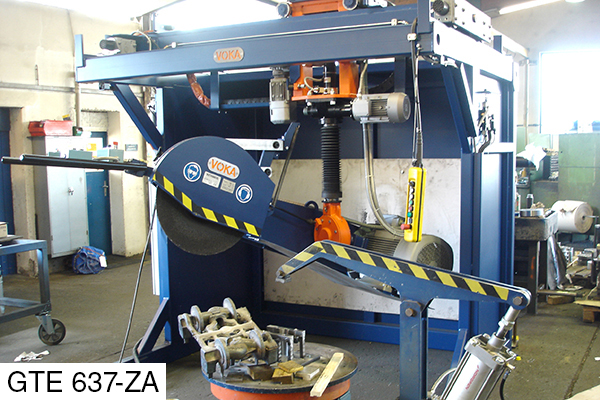

| GTE 637- ZA | ZPT 637 | Ø 600/6/60 mm | Ø 120 mm | 80 m/s |

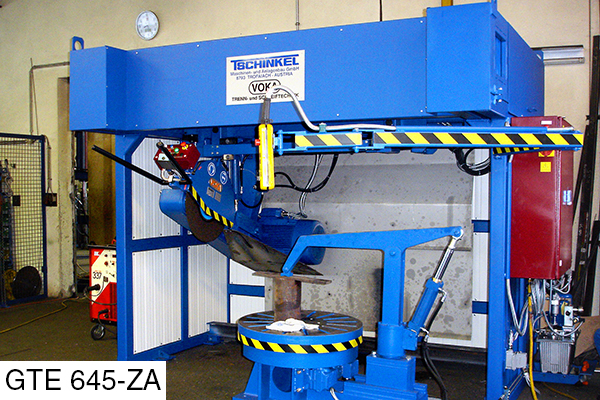

| GTE 645- ZA | ZPT 645 | Ø 600/6/60 mm | Ø 140 mm | 80 m/s |
