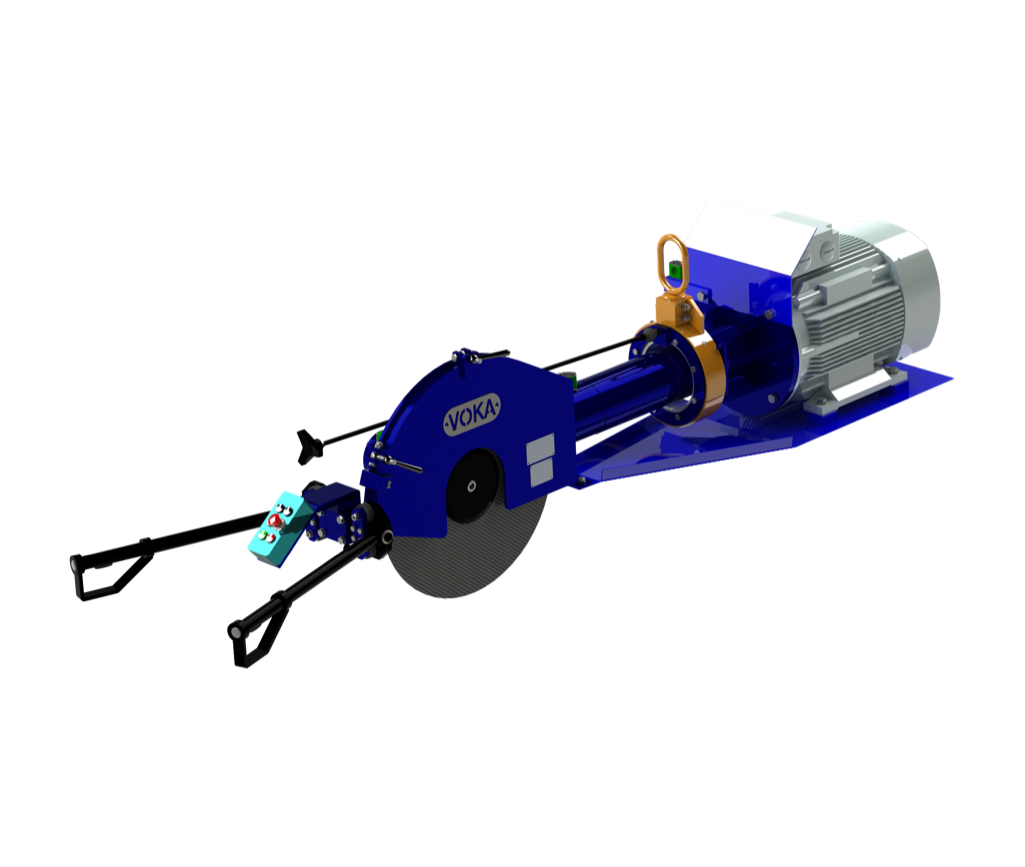

Pendulum cutting machines
For the efficient separation of runners and risers from castings, our hand
operated VOKA machines offer universal applications.
- Cardan drive or high performance toothed belt drive
- Robust and foundry-grade construction
- Movable suspension
- Easy to operate
- Low maintenance
- Low-vibration handle
- Two-handed operation
- Cutting protector

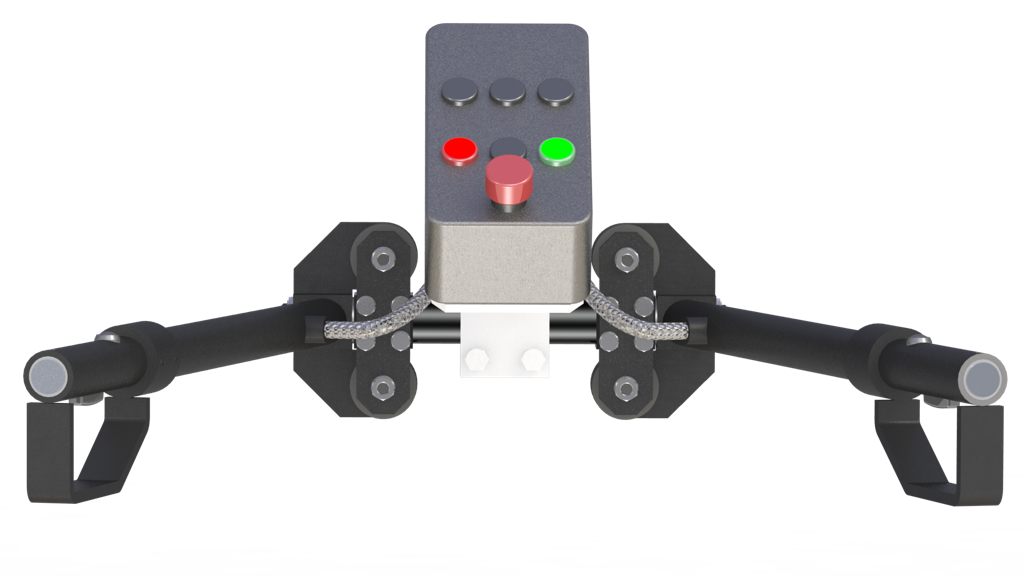

Advantages of two-handed operation:
- Operator protection
- Direct integration of the control keys in the handles of the machine
- The control buttons are also protected by an additional guard reinforcing the safe handling and
control of the machine
- No long overrun of the cut-off disc
- Immediate energy recovery
- Reduces operating costs
Advantages of the sliding safety cover:
- The safety cover is linked parallel to the handlebars which allows deeper cuttings into the castings
- Ability to separate runners from castings
Pendulum cut-off machines with cardan drive
Type |
Disc dimension |
Drive power |
Max. separation section |
Max. disc speed |
KPT 304 |
Ø 300/4/30 mm |
4.0 kW |
Ø 50 mm |
80 m/s |
KPT 411 |
Ø 400/4/100 mm |
11.0 kW |
Ø 80 mm |
80 m/s |
KPT 518 |
Ø 500/5/100 mm |
18.5 kW |
Ø 100 mm |
80 m/s |
KPT 637 |
Ø 600/6/60 mm |
37.0 kW |
Ø 120 mm |
80 m/s |
Pendulum cut-off machines with toothed belt drive
Type |
Disc dimension |
Drive power |
Max. separation section |
Max. disc speed |
ZPT 304 |
Ø 300/4/30 mm |
4.0 kW |
Ø 50 mm |
80 m/s |
ZPT 407 |
Ø 400/4/40 mm |
7.5 kW |
Ø 80 mm |
80 m/s |
ZPT 518 |
Ø 500/5/40 mm |
18.5 kW |
Ø 100 mm |
80 m/s |
ZPT 637 |
Ø 600/6/60 mm |
37.0 kW |
Ø 120 mm |
80 m/s |
