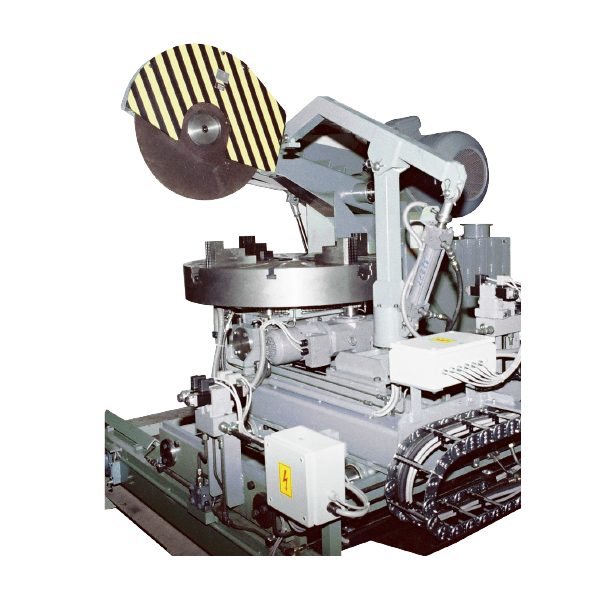

Stationary cut-off machines
VOKA stationary cut-off machines, type GTM are optimized for the separation of runners and risers from serial
castings.
- Operation via a control panel with a joystick
- Flexible modular system
- Work pieces and mobile work piece cart
- Sound proof cabins to control noise and dust
- Electronic or hydraulic cutting disc drive with automatic speed control
Stationary cut-off machines with electrical drive
Type |
Disc dimension |
Drive power |
Max. separation section |
Max. disc speed |
GTM 655 |
Ø 600/6/100 mm |
55 kW |
Ø 140 mm |
80 m/s |
Stationary cut-off machines with hydraulic drive
Type |
Disc dimension |
Drive power |
Max. separation section |
Max. disc speed |
GTM 890 |
Ø 800/8/80 mm |
90 kW |
Ø 200 mm |
80 m/s |
GTM 1100 |
Ø1000/10/127 mm |
110 kW |
Ø 230 mm |
80 m/s |
