High performance rough grinding machines

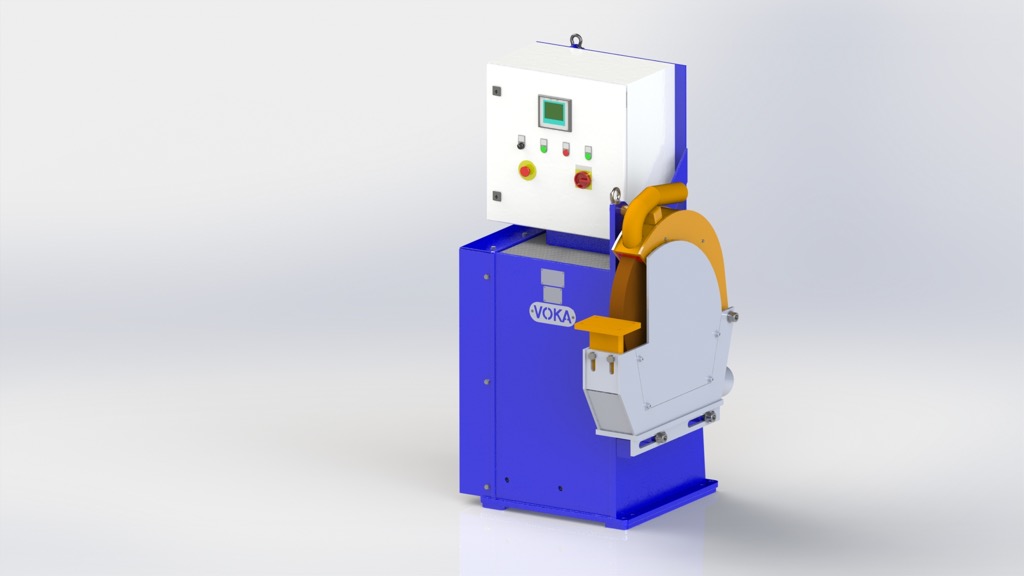

VOKA high performance rough grinding machines type HSE 60-600 UF with frequency invertor allows an energy efficient and safe grinding of work pieces.
- Robust and foundry-grade construction
- Toothed belt drive
- Robust spindle bearing
- Frequency inverter
- Immediate energy recovery
- Quick stopping time of the grinding disc
- Constant grinding disc speed and performance
- High level of operational safety
| Type | Disc dimension | Drive power | Max. disc speed. |
|---|---|---|---|
| HSE 60- 600 UF | Ø 600/60/203 mm | 7.5 kW | 60 m/s |
| HSE 60- 600 | Ø 600/60/203 mm | 7.5 - 11.0 kW | 60 m/s |
The high performance rough grinding machine, type HSE 60-600 is available with an optional 3-speed double V-belt drive.
