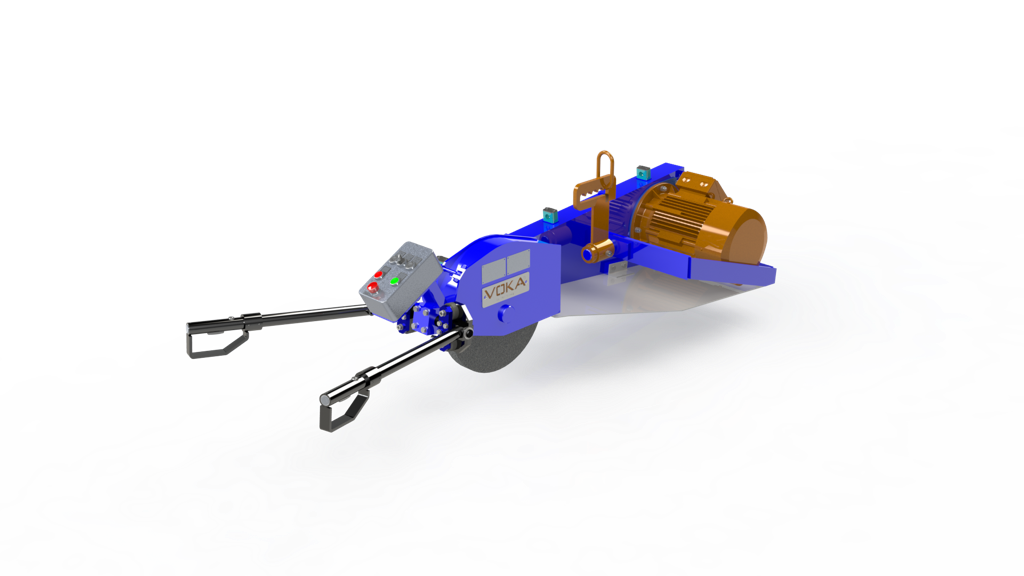

Pendulum grinding machines
VOKA pendulum grinding machines from the KPS and ZPS series are perfectly suited
for the rough grinding of medium and heavy castings.
- Cardan drive or high performance toothed belt drive
- Robust and foundry-grade construction
- Movable suspension
- Easy to operate
- Low maintenance
- Low-vibration handle
- Two-handed operation
Advantages of the two-handed operation:
- Protection for the operator
- Direct integration of the control keys in the handles of the machine
- Safe handling of the buttons is reinforced by an additional guard
- No long overrun of the grinding disc
- Immediate energy recovery
- Reduction of operating costs
Pendulum grinding machines with cardan drive
| Type | Disc dimension | Drive power | Max. disc speed |
|---|---|---|---|
| KPS 304 | Ø 300/30/30 mm | 4.0 kW | 60 m/s |
| KPS 407 | Ø 400/40/40 mm | 7.5 kW | 60 m/s |
| KPS 518 | Ø 500/50/127 mm | 18.5 kW | 60 m/s |
| KPS 630 | Ø 600/60/203 mm | 30.0 kW | 60 m/s |
Pendulum grinding machines with toothed belt drive
| Type | Disc dimension | Drive power | Max. disc speed |
|---|---|---|---|
| ZPS 304 | Ø 300/30/30 mm | 4.0 kW | 60 m/s |
| ZPS 407 | Ø 400/40/40 mm | 7.5 kW | 60 m/s |
| ZPS 518 | Ø 500/50/127 mm | 18.5 kW | 60 m/s |
| ZPS 630 | Ø 600/60/203 mm | 30.0 kW | 60 m/s |
The models ZPS 518 and ZPS 630 are available with an optional pressurized raising device. Due to the mechanical intensity of the grinding pressure, these machines feature a considerable increase of grinding output in combination with minimum physical effort from the operator.
